Chapter 10 followed game files and mods through their formats, integrity checks, and loading behavior. Some games also offer a supported way to run small scripts inside the game. That changes the first question: instead of asking where a value lives in memory, ask which values and actions the game deliberately gives to a script. Lua is one common language for that boundary.
We will first write small Lua scripts and define the host A P I, application programming interface, that contains them. Once those pieces work, we will open the interpreter itself: source text becomes bytecode, and bytecode runs on a virtual machine with its own values, stack, and object lifetimes.
Section: Compiled engine, flexible script.
The native host is normally compiled ahead of time into machine code. Changing its source means building a new executable or library.
Lua is a small programming language commonly embedded inside a larger program. The game owns a Lua interpreter and asks it to run text scripts. A designer can change a quest, unit behavior, or user-interface behavior without rebuilding the whole engine.
Use the host-boundary model:
The engine owns the runtime and decides which values and functions cross the A P I boundary. A script cannot automatically do everything the engine can do; it sees only the capabilities that the host deliberately exposes.

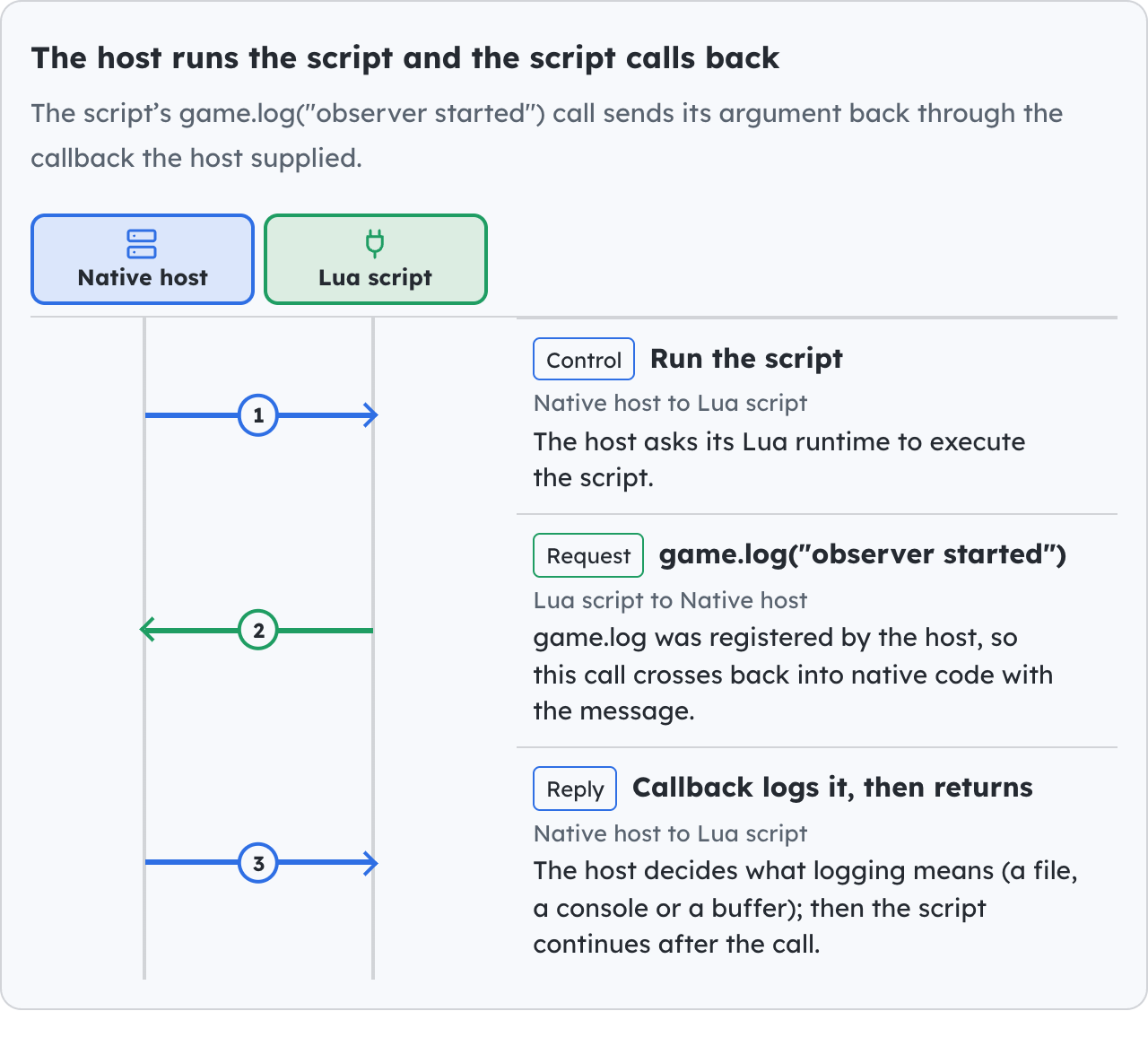

Section: From a script file to one visible result.
The host loads Lua source, checks that it is valid Lua, and asks the Lua runtime to execute it. When the script calls game.log, execution crosses back to a function the host supplied.
Alternative: Embedding Lua is a conversation: the host asks the interpreter to run a script, and a registered callback lets the script ask the host for one service.
The interpreter inside that runtime is also called a Lua virtual machine, or V M, virtual machine: it follows internal instructions made from the script. That is enough to understand why a host can later count script steps. Lesson 11.9 opens the V M and shows the instructions themselves.
We can observe the host crossing without changing any game state:
Code example. The surrounding prose explains this example; the full lesson contains the exact code.
Here game is a table of functions supplied by our lab host, log is one of those functions, and the quoted text is its argument. The host decides where the message appears. For this first script, we only need to know who runs it and who supplies game.log.
Section: Lua is dynamically typed.
The host language knows a variable’s type at compile time:
Code example. The surrounding prose explains this example; the full lesson contains the exact code.
In Lua, a variable can refer to values of different types at different times:
Code example. The surrounding prose explains this example; the full lesson contains the exact code.
That flexibility is convenient for configuration and gameplay behavior. It also moves many mistakes from compile time to runtime. Clear names, validation, tests, and small APIs matter even more.
For these lessons we pin the lab to Lua 5.4 through mlua 0.12. Other games may embed Lua 5.1, LuaJIT, Lua 5.5, or a customized dialect. Check the target’s documentation or version string before assuming features exist.
Section: The values you meet first.
These declarations put seven different kinds of value behind local names. Nothing runs merely because the function value is created; decide can be called later, while the other values can be read or changed by later code.
Code example. The surrounding prose explains this example; the full lesson contains the exact code.
Lua also has threads/coroutines and userdata supplied by a host. A table is the main container: it can behave like a list, dictionary, record, namespace, or object.
A table variable refers to one table object. Assigning it to another name copies that reference, so two names can reach the same table:
Code example. The surrounding prose explains this example; the full lesson contains the exact code.
second equals first copied the reference, the arrow, not the table it points to. There is only one health field, so the write through second is the value read through first.
This shared reference is called aliasing. Lesson 11.3 develops tables and how iteration selects keys; Lesson 11.10 explains how the runtime represents values and eventually reclaims unreachable tables. When a table crosses into a host function, the host must still validate the fields it receives.
Section: Local versus global names.
The two assignments below look similar, but only the first declares a name private to its scope. The second writes into Lua’s shared global environment.
Code example. The surrounding prose explains this example; the full lesson contains the exact code.
Prefer local unless you intentionally publish a value. Accidental globals let separate scripts overwrite each other’s state and make spelling mistakes difficult to find.
Narration: A misspelled global assignment can quietly create shared state. Local names keep that mistake from changing what another script sees.
Section: The host A P I is the security boundary.
A poor host might expose an all-powerful function:
Code example. The surrounding prose explains this example; the full lesson contains the exact code.
The book’s lab exposes a narrow interface instead:
Code example. The surrounding prose explains this example; the full lesson contains the exact code.
game.snapshot() returns copied sample data. If a second entity exists, the script asks to select its ID; the host can still reject the request if that ID is no longer valid. game.request accepts only a small list of validated actions. The script never receives a process handle, arbitrary pointer, command shell, or raw Windows A P I.
In brief: A script can act only through the host functions it receives; copied observations do not grant arbitrary memory access.
This is capability design: code can do only what the values and functions in its environment allow.
Section: Your first observer.
The file lua-labs/scripts/observer.lua contains:
First, game.snapshot() supplies a list of copied entity tables. Lua’s ipairs(entities) then visits list entries in order. In the for line below, _ discards the numeric position and entity names the current entry. The alive and "alive" or "dead" expression chooses one of two words, and string.format fills the %s text slots and %.1f one-decimal number slots. Those pieces turn one copied list into readable output:
Code example. The surrounding prose explains this example; the full lesson contains the exact code.
Read it as a sequence:
ask for one snapshot;
visit each entity in its list order;
choose a readable state word;
format one message;
send that text to the host logger.
Nothing here edits a game. It proves the language, table shape, and host boundary before later automation.
Section: Run the lab.
From the repository root:
Terminal window
Code example. The surrounding prose explains this example; the full lesson contains the exact code.
The host works on Windows, macOS, and Linux because it uses a simulated snapshot. Later you can connect the same A P I shape to one of the book’s read-only Windows observers.
Section: Versions and trust differ between games.
Games that load Lua mods differ in each of these, and each one changes what a script can do or how its failures show up:
Lua version or dialect;
search paths and file names;
which standard libraries are available;
host-provided functions and their required argument types and ranges;
whether scripts are trusted, signed, or user-authored;
C P U, central processing unit,, memory, and action limits;
how a script error is reported and disabled.
Lua makes behavior easier to change. A well-designed host also makes the boundaries easier to explain.
