You press forward. Your player moves immediately, yet the server has not received the input. Later, a reply may adjust that movement. To understand why, follow the input across the pieces of the game that own each decision. Lesson 9.1 introduced client and server messages. Source gives us a concrete engine in which those messages connect to objects and time.
Section: Why study Source?.
Source is Valve’s game-engine family behind Half-Life 2, Counter-Strike: Source, Team Fortress 2, Left 4 Dead, and the original Counter-Strike: Global Offensive. They share architectural ideas, but their engine branches differ. Counter-Strike 2 uses Source 2, a later engine family. An interface name or memory layout from Source 1 is not a promise about Counter-Strike 2.
Valve’s public Source SDK 2013 supplies game code and interfaces for Half-Life 2, Half-Life 2: Deathmatch, and Team Fortress 2. An SDK, or software development kit, gives developers code and tools for building compatible software. This repository lets us inspect the game side of the boundary. It does not supply every implementation inside a shipping engine.
This lesson follows the SDK revision beginning b8cfb12. Treat its named interfaces and defaults as facts about that revision. Keep experiments in your own offline SDK mod. A mod supplies changed game content or behavior while using the engine’s supported loading contracts.
Section: The engine connects client and server game code.
A launcher starts the engine and selects the game to load. The engine provides common services such as files, rendering, sound, and networking. Game-specific code defines weapons and entities, calculates movement and damage, and decides how those objects respond to input and contact.
On Windows, this game code commonly comes in client.dll and server.dll. A D L L, dynamic link library, is a library loaded into a process while it runs, as introduced in Lesson 8.1. Other operating systems use their own shared-library formats for the same architectural division.
The client library handles the player’s input, local presentation, and prediction. The server library calculates movement, collisions, damage, and other changes to the match state; it sends the accepted results to clients. Some movement code is shared so both sides can compute comparable results. Rendering a player and deciding whether that player can pass a wall are separate responsibilities.
A listen server hosts the simulation inside a game that also has a local player. A dedicated server runs the hosting side without that local player’s view. Even a local game can retain the client/server division. The boundary describes who owns a decision, whether its messages cross the Internet or stay on one machine.
In brief: The client presents and predicts. The server decides the game state. The engine connects their game libraries.
Section: Modules ask for an interface by name.
The engine cannot call an arbitrary function inside a loaded library and hope its arguments fit. The two sides need an agreed set of operations. That set is an interface: a contract describing which methods an object provides and how to call them.
Source modules expose a factory named CreateInterface. A factory is a function that supplies an object through an agreed interface. The caller passes the requested name. The module searches its registered interfaces and returns a pointer to the matching object, or a null pointer if it cannot provide one. A separate, optional status output receives IFACE_OK or IFACE_FAILED.
Each name carries a version suffix. In this revision, VClient017 names the client game interface and VEngineServer023 the engine services offered to server code. The suffix is part of the requested contract: the returned object’s virtual methods follow that version’s C++ calling contract, which a neighbouring version can change. CreateInterface itself is an ordinary export, found by name the way Lesson 8.1’s injector finds gha_start.
Alternative: Picture a shared menu of operations. The version name selects the menu both modules agree to use.
This explains a startup failure that otherwise looks mysterious: a library loads successfully, but it cannot provide the interface the engine asks for. Loading bytes and agreeing on their callable contract are different checks.
Section: Entity state becomes selected network properties.
Once the libraries connect, the server can create an entity, an object the game tracks: a player, door, projectile, or another piece of the world. Its full object contains more information than a client needs. Some fields are server bookkeeping. Others describe what the client must display.
A SendTable declares properties that server game code makes available for network encoding. A corresponding RecvTable describes how client game code receives those properties. These are descriptions of fields and their encoding, rather than a copy of the whole C++ object. Nested tables let one class reuse another class’s networked fields.

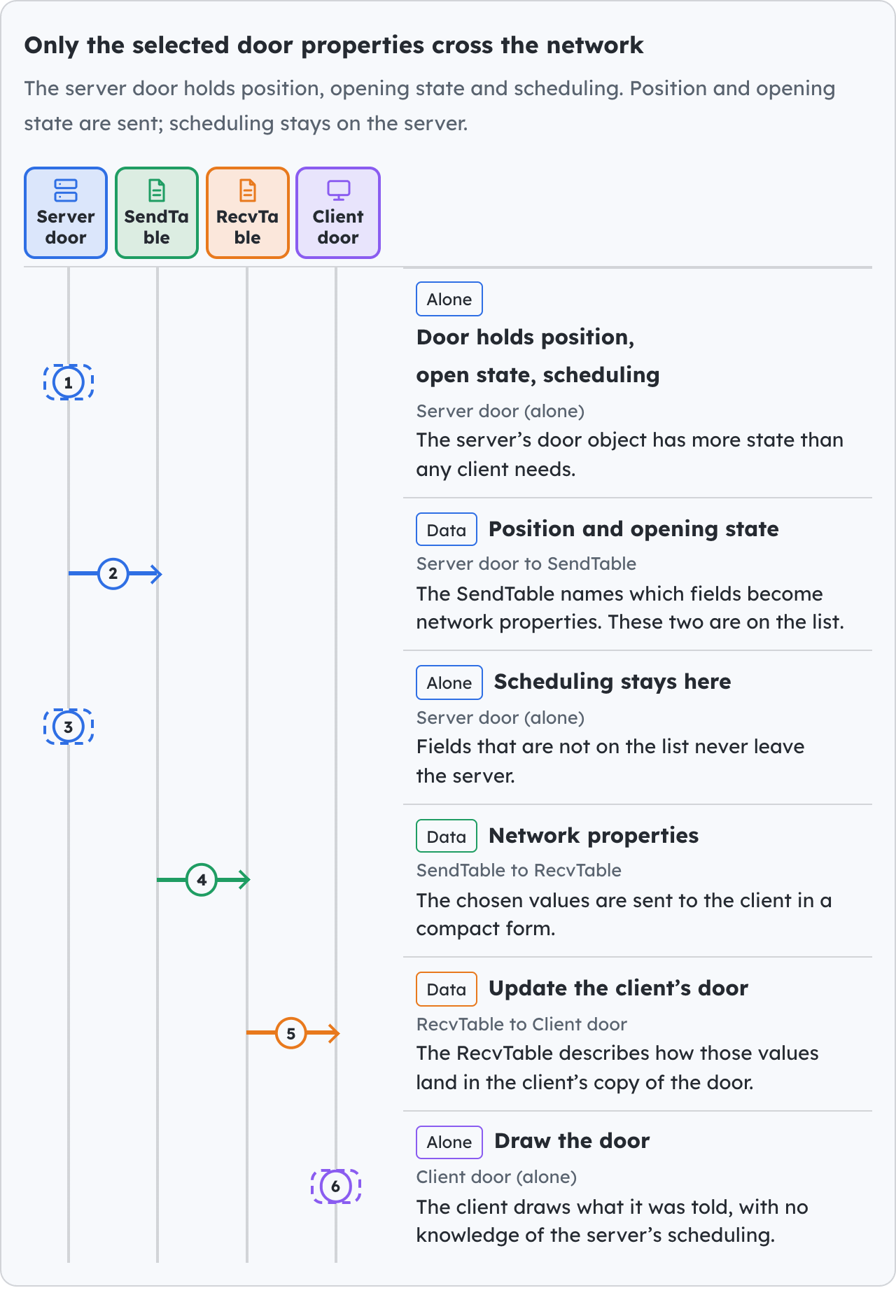

Think of a door whose server object stores its position, opening state, and internal scheduling data. The client needs enough state to place and draw the door. It does not need every scheduling field. The property declarations make that selection explicit. The engine can also limit which entities and updates are relevant to a particular client.
Floating-point properties can trade precision for bandwidth through quantization: representing a range with a limited set of codes. As an illustration, four bits give 2 to the power of 4 equals 16 codes. Spread those codes across a chosen range from 0 to 15, including both ends. The spacing is (15 minus 0) divided by (16 minus 1) equals 1. Values between the available steps need an encoding rule that chooses a representable value.
The SDK’s SendPropFloat accepts a bit count, range, and flags. Some settings use an unscaled float instead. The four-bit example explains the trade; it does not describe every Source float on the wire. A client-side value can therefore differ slightly from the server’s value even when both sides work correctly.
Section: Input becomes a command record.
Now the player presses a movement key. The client game interface’s CreateMove produces a user command, one record of player input for simulation. Source names that record CUserCmd.
Its command_number identifies a command in the sequence. Its tick_count records the tick when the client created it. A tick is one step of the simulation clock. Command numbers and tick numbers have different jobs, even when a small example gives them matching values.
The record includes view angles and the intended movement values forwardmove, sidemove, and upmove. It also includes weapon selection and mouse movement. These inputs describe what the player requests. They do not establish the final position, damage, or inventory result.
The buttons field packs several requests into one integer. In this SDK, attack uses bit 0 and jump uses bit 1. Their values are 2 to the power of 0 equals 1 and 2 to the power of 1 equals 2. Requesting both sets the combined mask 1 | 2 equals 3, whose two lowest bits are on. The server can test each bit separately.
This memory object is not the packet format. Command encoding records changes relative to another command, and decoding rebuilds the record. Fields used for local prediction bookkeeping do not all become raw packet bytes. Keeping object layout and wire encoding separate matters just as it did for the message parsers earlier in this chapter.
Section: A tick advances the world; prediction advances the local estimate.
The SDK’s default tick interval is 0.015 seconds. Multiply by 1000 to get 15 milliseconds per tick. Divide one second by the interval to get 1 divided by 0.015 approximately 66.67 simulation steps per second. A game can supply its own interval, so this default is not every Source game’s rate.
The server game interface exposes GameFrame for simulation work and GetTickInterval for its interval. Drawing frames happens on another schedule. A faster renderer can draw additional views between simulation ticks; it does not give the player additional accepted movement.
Waiting for a network reply before showing every step would make movement feel delayed. Prediction lets the client run its local player’s movement using input commands immediately. The server still runs its own simulation, and its results are authoritative in the sense of Lesson 9.1: they are the state the client must reconcile with.
Use a deliberately small movement model to see the reconciliation. Start at x equals 0. Each accepted forward command adds one position unit. Commands 1 and 2 request +1, giving 0 + 1 equals 1, then 1 + 1 equals 2. These are toy displacements, not Source’s velocity and collision formulas. The scene’s 15-millisecond clock comes from the SDK default.
A barrier now closes on the server and prevents movement past x equals 2. The client has not received that update. Command 3 requests another +1. The client predicts 2 + 1 equals 3; server collision keeps the position at 2. Before the reply arrives, command 4 requests minus 1. The client’s current prediction becomes 3 minus 1 equals 2.
Narration: The server’s barrier has closed. The client’s earlier prediction has not heard about it yet.
The server reply acknowledges command 3 and reports position 2. An acknowledgment identifies the input already covered by the returned state. The client starts from that authoritative position and drops commands 1 through 3 from its pending history. Command 4 is still pending, so it replays that minus 1: 2 minus 1 equals 1.
That replay preserves the player’s newer input while correcting the earlier prediction. Simply replacing the displayed position would lose pending movement. Replaying commands already acknowledged would repeat work the server’s state already contains.
Section: Snapshots smooth other players; lag compensation checks past positions.
A snapshot describes server state at a point in simulation time. It may be encoded as changes from an earlier known snapshot. Snapshot delivery, tick rate, and rendering rate are separate schedules.
For another player’s movement, the client usually has received states rather than that player’s newest input. Interpolation draws intermediate positions between received states. Showing a slightly older timeline gives the renderer states on both sides of the time it wants to draw. That makes motion smooth instead of jumping whenever a message arrives.
Prediction estimates the local player’s response to input. Interpolation fills the visible gaps between other entities’ received states. Neither makes a client observation newer than the information actually received.
This delay also matters when a player fires. The target they saw may occupy an earlier position than the server’s current position. Lag compensation temporarily uses recorded earlier player states for the relevant server-side hit check, then restores the current simulation. The server still performs the hit check, and the world does not permanently travel backward because a packet arrived.
In this SDK, the initial target tick is the command’s tick_count minus the interpolation delay expressed in ticks. The server also checks that time against its latency estimate. A discrepancy greater than 0.2 seconds uses a latency-based target instead. The inspected sv_maxunlag default is 1 second and bounds the allowed correction. This is a bound on the decision; it is not a promise that every past state remains available for exactly one second.
Section: Console variables have permissions as well as values.
Games need settings without recompiling each change. A console variable, or ConVar, is a named setting with a value and flags describing how it may be used. The developer console exposes these settings and named commands.
FCVAR_CHEAT restricts certain development controls to permitted cheat contexts, including the server’s sv_cheats setting. FCVAR_REPLICATED marks a server-controlled setting enforced on connected clients. Flags describe permissions and ownership as well as storage behavior.
A server can ask for a client’s variable through StartQueryCvarValue. The request returns a cookie, an identifier for matching a later reply to that request. It does not return the variable’s value immediately. OnQueryCvarValueFinished supplies the later status and value. The FCVAR_SERVER_CANNOT_QUERY flag forbids that query for the marked variable.
For a defender, a client-reported setting is evidence about what the client reported, not a replacement for the server-side movement, inventory, and damage checks of Lesson 9.2. A timeout or failed query is not automatically proof of cheating either.
Section: The same engine loads packages and compiled maps.
Those entities need geometry, models, textures, and sounds. V P K, short for Valve PacK, bundles resource files behind a directory tree. An entry identifies where its bytes live, possibly in a companion archive. Some bytes can be stored with the directory as preload data. This lets the file system locate a resource without treating every small asset as a separate loose file.
A B S P is a compiled map. The name comes from binary space partitioning, which divides space to organize geometry queries. A Source B S P contains sections called lumps, holding map data such as geometry, visibility, and starting entity definitions. It can also contain embedded resources.
The inspected header starts with VBSP, then a version and a directory of 64 lump descriptors. Each descriptor provides an offset, length, and version-related metadata. Different game branches can interpret sections differently. Reading a file therefore starts with identifying its format and validating its bounded sections, not treating its bytes as a live entity object. Chapter 9 develops that file-validation work.
Section: Use each boundary for the question it can answer.
An offline observer built with supported interfaces can record command numbers, simulation ticks, received properties, and prediction corrections. Those records answer different questions. A rendered location describes a view; a server result describes an accepted simulation step; a package entry locates stored content.
For your own mod, keep module versions explicit and record which side owns each value. Start work after D L L loading has finished, stop workers before unloading, and release their handles when stopping tools. For defenders, validate player requests against server-owned state and keep work per client bounded. Interpolation, quantization, and correction explain some ordinary discrepancies, so one mismatch needs context. Chapter 15 builds on this separation between requests, observations, and decisions.
