Cheatsheet for Lesson 2.7Key ideas, reference and questions

A one-page summary of “Why Addresses Move” you can keep beside your notes. Plain Markdown.

Lesson 2.7 — Why Addresses Move: cheatsheet

• Remember: An address is only a location for this run. Identity and lifetime come from the code and objects around it.
• Also useful: Think of a tape measure: the starting mark moves each run, but a feature stays the same distance from it. Base plus offset gives today's place.

Key ideas

• adding an offset finds a slot; reading the pointer in that slot finds the next object.

Formulas and patterns

• module base + relative offset = current address

Review

• Q: What location description normally survives ASLR for one exact module build? A: The current module base plus a build-specific RVA
• Q: Which pair of reasons commonly explains why a value's address differs between runs of a game? A: Memory is allocated on demand, and modules can load at different bases

Download cheatsheet (.md)

Download cheatsheet (.md)

The disappearing-address problem

You find gold at 0x1234_5678, restart the game, and the address is different. Nothing is broken. The address was never a permanent identity.

Two common reasons are:

• dynamic allocation — the game asks for memory while it runs;
• ASLR, short for Address Space Layout Randomization — Windows loads modules at different base addresses between runs.

Virtual addresses belong to one process. The same numeric address in two different processes can name completely different physical memory, and a freed address can later be reused for another allocation in the same process.

Every address involves three separate things, location, identity, and lifetime:

• a location is the virtual address used for this access;
• an identity is the game object or field that lives there;
• a lifetime is the interval during which that mapping remains valid.

An address gives only the first item. The code that uses it, the objects that point to it, and repeated access patterns show the identity. Allocation and game events determine the lifetime. A reusable tool must rediscover or validate the location instead of treating yesterday’s address as permanent identity.

TL;DR: An address is only a location for this run. Identity and lifetime come from the code and objects around it.

Relative locations

ASLR can load a module at a different base address on another run. Within one exact executable build, a global’s relative virtual address (RVA) in the image is fixed even when the module base changes. The loader maps sections at their defined relative locations and applies relocations where needed. Thus a tool can rediscover the base and add the verified RVA; it must not assume ASLR picks a new base on every launch or that a rebuilt game keeps the same RVA:

module base + relative offset = current address

If wesnoth.exe loads at 0x1400_0000 and a global pointer is at offset 0x01A2_B3C0, the current address is:

0x1400_0000 + 0x01A2_B3C0 = 0x15A2_B3C0

usize is the integer type normally used for an address-sized number:

fn absolute_address(module_base: usize, offset: usize) -> Option<usize> {
    module_base.checked_add(offset)
}

checked_add returns None if the addition overflows instead of silently wrapping.

Alternative: Think of a tape measure: the starting mark moves each run, but a feature stays the same distance from it. Base plus offset gives today’s place.

Pointer chains

A stable module location may hold a pointer to an object, which holds a pointer to another object, which contains gold:

Each arrow that says “read pointer” means:

1. calculate an address;
2. read a pointer-sized value from it;
3. treat the result as the next address.

The last step may be a field address rather than another pointer.

Pointer size follows the target architecture. A 32-bit process stores a pointer in four bytes; a 64-bit process normally uses eight. Reading eight bytes from a 32-bit pointer field consumes neighboring data, while reading four from a 64-bit pointer truncates the address. The reader must use the target’s bitness, not the host’s.

At every link, distinguish three different numbers:

• the address where a pointer is stored;
• the pointer value read from that address;
• the field offset added to that pointer value.

Writing the chain as numbered equations makes accidental double-dereferences visible.

Walked with real numbers, the chain in the diagram above looks like this:

module base                    0x1400_0000
+ root offset 0x01A2_B3C0  ->  0x15A2_B3C0    an address holding a pointer
read the pointer there     ->  0x0453_1180    the player manager

0x0453_1180 + 0x18         ->  0x0453_1198    an address holding a pointer
read the pointer there     ->  0x0691_A200    the current player

0x0691_A200 + 0x30         ->  0x0691_A230    the address of the gold field
read four bytes there      ->  250            the value you wanted

Notice the rhythm: add, read, add, read — and then at the last step, add and stop. That final + 0x30 produces the address of gold, not a pointer to somewhere else. Reading a pointer there instead would take the number 250, treat it as an address, and try to read memory at 0x0000_00FA.

That is the “one dereference too many” mistake, and it has a recognizable signature: the error names a very small address. Ordinary game values — health, gold, ammunition — are small numbers, so when one is mistakenly used as an address it points at the very bottom of the address space, where nothing is mapped. An error mentioning an address below a few thousand almost always means you dereferenced a value instead of a pointer.

Predict first

Restart the game. Windows loads wesnoth.exe at 0x13A2_0000 this time, and the game allocates its manager and player objects at new heap addresses.

You walk the same path: root offset 0x01A2_B3C0, then + 0x18, then + 0x30. Where do you end up?

Answer: At this run’s gold field. The root slot moved with the module to 0x13A2_0000 + 0x01A2_B3C0 = 0x1544_B3C0, and the game stored this run’s manager address in it. Each read picks up a pointer the game wrote in this run, so the walk follows the objects to their new places.

One pointer path, three runs of the gameThe offsets stay the same. The module base and the heap objects can move on every start, and each read picks up the pointer the game stored in this run.

Run 1: add, read, add, read, add

Module base + 0x01A2B3C0

0x14000000module base

0x15A2B3C0root slot

Read it, then + 0x18

0x04531180manager

0x04531198slot

Read it, then + 0x30

0x0691A200player

0x0691A230gold field

Read 4 bytes there

250gold

Gold is at 0x0691A230 in this run. Choose another run: the addresses change, the offsets do not.

Pointer scan results need checking

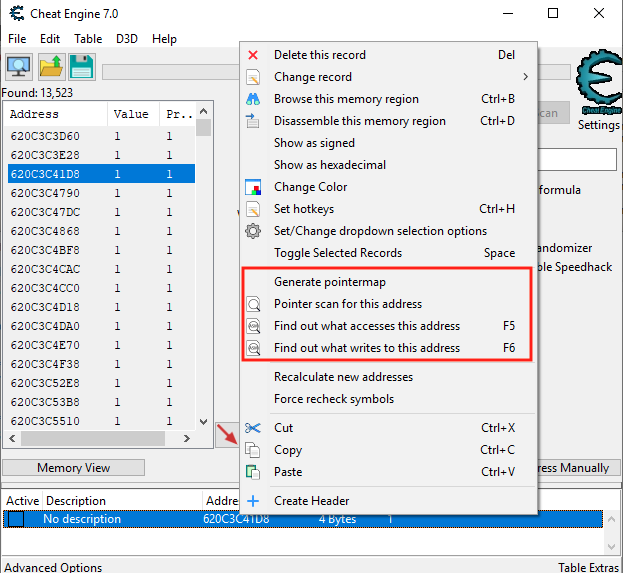

Cheat Engine can search for pointer paths automatically:

Cheat Engine's pointer scan searches for pointer paths automatically.

A result is not automatically correct. Validate it across several clean restarts. Prefer paths that:

• begin inside a known module;
• use a short chain;
• work on the exact documented game version;
• end at the expected value;
• fail safely when a pointer is null or unreadable.

A pointer scan finds numeric relationships that existed in its snapshots. It does not prove ownership. Large offsets, very long chains, and links through short-lived allocations are more likely to be coincidences. Normal gameplay tests—opening menus, changing maps, loading a save—exercise those ownership assumptions.

Narration: A path that breaks after you load a new map probably ran through a short-lived object. Testing across menus and loads exposes that before you rely on it.

Give addresses a checked type

Do not scatter raw address math around a program. Give it a type:

#[derive(Clone, Copy, Debug)]
struct Address(usize);

impl Address {
    fn offset(self, amount: usize) -> Option<Self> {
        self.0.checked_add(amount).map(Self)
    }
}

This wrapper does not prove that an address is readable. It does stop us from accidentally mixing an address with an ordinary game value, and it gives one place for overflow checks.

The operating-system call that reads another process still belongs behind a carefully reviewed unsafe boundary. The rest of the pointer-chain algorithm can remain safe, ordinary code.

Walk a chain without losing the meaning

Use a function whose name says whether the final offset is dereferenced:

fn walk_to_field(
    process: &Process,
    module_base: usize,
    root_offset: usize,
    pointer_offsets: &[usize],
    field_offset: usize,
) -> anyhow::Result<usize> {
    let root = module_base.checked_add(root_offset)
        .context("root address overflowed")?;
    let mut object = process.read_pointer(root)?;

    for &offset in pointer_offsets {
        anyhow::ensure!(object != 0, "null object pointer");
        let link = object.checked_add(offset)
            .context("pointer-link address overflowed")?;
        object = process.read_pointer(link)?;
    }

    anyhow::ensure!(object != 0, "null final object pointer");
    object.checked_add(field_offset)
        .context("field address overflowed")
}

The final field address is returned without reading another pointer. Keeping that distinction in the function signature and variable names prevents the common “one dereference too many” mistake.

The change from loose arithmetic to a deliberate chain is easier to see as a diff:

The original helper adds the root offset, two link offsets and the field offset as if they were all distances inside one allocation. Here those arguments describe a two-link pointer path: each intermediate slot stores the address of another object.

Before: add every offset without following pointers

fn read_gold(
    process: &Process, module_base: usize, root_offset: usize,
    first_link: usize, second_link: usize, field_offset: usize,
) -> anyhow::Result<u32> {
    let gold = process.read_u32(
        module_base + root_offset + first_link + second_link + field_offset,
    )?; // Wrong: no intermediate pointer is read.
    Ok(gold)
}

Separate address arithmetic from dereferencing. At each link, calculate the slot, read the pointer stored there, and reject null; only the final field is read as gold. These offsets are inputs recovered for your own exact lab build, not universal game addresses.

Improved code

fn read_gold(
    process: &Process, module_base: usize, root_offset: usize,
    first_link: usize, second_link: usize, field_offset: usize,
) -> anyhow::Result<u32> {
    let root = module_base.checked_add(root_offset)
        .context("root address overflowed")?;
    let mut object = process.read_pointer(root)?;
    for offset in [first_link, second_link] {
        anyhow::ensure!(object != 0, "null object pointer");
        let slot = object.checked_add(offset).context("link address overflowed")?;
        object = process.read_pointer(slot)?;
    }
    anyhow::ensure!(object != 0, "null final object pointer");
    let field = object.checked_add(field_offset).context("field address overflowed")?;
    let gold = process.read_u32(field)?;
    Ok(gold)
}

Show the diff

fn read_gold(
    process: &Process, module_base: usize, root_offset: usize,
    first_link: usize, second_link: usize, field_offset: usize,
) -> anyhow::Result<u32> {
    let gold = process.read_u32(
        module_base + root_offset + first_link + second_link + field_offset,
    )?; // Wrong: no intermediate pointer is read.
    let root = module_base.checked_add(root_offset)
        .context("root address overflowed")?;
    let mut object = process.read_pointer(root)?;
    for offset in [first_link, second_link] {
        anyhow::ensure!(object != 0, "null object pointer");
        let slot = object.checked_add(offset).context("link address overflowed")?;
        object = process.read_pointer(slot)?;
    }
    anyhow::ensure!(object != 0, "null final object pointer");
    let field = object.checked_add(field_offset).context("field address overflowed")?;
    let gold = process.read_u32(field)?;
    Ok(gold)
}

Takeaway: adding an offset finds a slot; reading the pointer in that slot finds the next object.

Why this version?

Offsets describe different jobs. root_offset locates the first pointer, link offsets locate the next pointer, and field_offset locates data inside the final object. Naming those stages prevents addition from being mistaken for dereferencing. It also places an error at the exact link that failed instead of returning one mysterious “bad address” message.

This interactive lab needs JavaScript. The lesson text around it still explains the same idea.

🧩

Knowledge check

Describe a moving address

What location description normally survives ASLR for one exact module build?

1The current module base plus a build-specific RVA2One absolute address copied down from yesterday's run3The title shown on the game's window while it runs4The process ID that Windows gave the game this time

Check answer

Finished Lesson 2.7?

Mark it done and the lesson list shows a ✓ beside it. A chapter whose lessons are all done is marked done too. Progress is saved in this browser only.

Mark lesson doneLesson done. Mark it not done
