A debugger is an event loop

The scanner in Lesson 5.8 found where a value was stored; the disassembler in Lesson 5.9 named instructions near an address. To learn which instruction actually changes Wesnoth’s gold during one turn, we need to pause when that instruction runs and inspect the live registers. A debugger provides that pause.

Windows reports events such as process creation, DLL loading, exceptions, and process exit. A breakpoint is one such event that this tool deliberately causes and then handles.

If the debugger forgets to continue an event, the target remains frozen.

Model events immediately

Convert Windows structs into owned typed data at the FFI boundary:

#[derive(Debug)]
enum DebugEvent {
    ProcessCreated { process_id: u32, thread_id: u32 },
    ThreadCreated { thread_id: u32 },
    ModuleLoaded { base: usize },
    Exception {
        thread_id: u32,
        code: u32,
        address: usize,
        first_chance: bool,
    },
    ProcessExited { code: u32 },
    Other,
}

Close or transfer ownership of any handles contained in the raw Windows event. Do not leak them during a long session.

Own breakpoint state

A software breakpoint replaces one instruction byte with 0xCC. To let the original instruction run later, the debugger must remember both its address and that displaced byte. Keying records by address also lets several breakpoints coexist without a single global “current breakpoint” slot:

#[derive(Debug)]
struct SoftwareBreakpoint {
    address: usize,
    original_byte: u8,
    armed: bool,
}

struct Debugger {
    process: Process,
    breakpoints: std::collections::HashMap<usize, SoftwareBreakpoint>,
}

Setting a breakpoint:

read the original byte;
store it;
write 0xCC;
flush the instruction cache;
mark it armed.

One byte swapped, one byte backThe instruction sub dword ptr [esi+30h], eax is 29 46 30 at 0x00A31000. The debugger owns a breakpoint on its first byte.

1 Armed: CC over the first byte
Code at 0x00A31000
Before
29…1000
46…1001
30…1002
Armed
CC…1000
46…1001
30…1002
Breakpoint map
0x00A31000
original byte 0x29
phase: Armed
The debugger read 0x29, saved it in its map, then wrote 0xCC. The other two bytes do not change.
2 The CPU executes CC
Code at 0x00A31000
Bytes
CC…1000
46…1001
30…1002
ip = 0x00A31001
ip…1001
Breakpoint map
0x00A31000
original byte 0x29
phase: Armed
int3 is a whole one-byte instruction, so once it has run, ip already points one byte past it, and Windows reports EXCEPTION_BREAKPOINT.
3 Restore 0x29, move ip back one
Code at 0x00A31000
Bytes
29…1000
46…1001
30…1002
ip = 0x00A31000
ip…1000
Breakpoint map
0x00A31000
original byte 0x29
phase: SteppingOriginal
0x00A31001 − 1 = 0x00A31000, so ip points at the whole real instruction again, ready to run once.

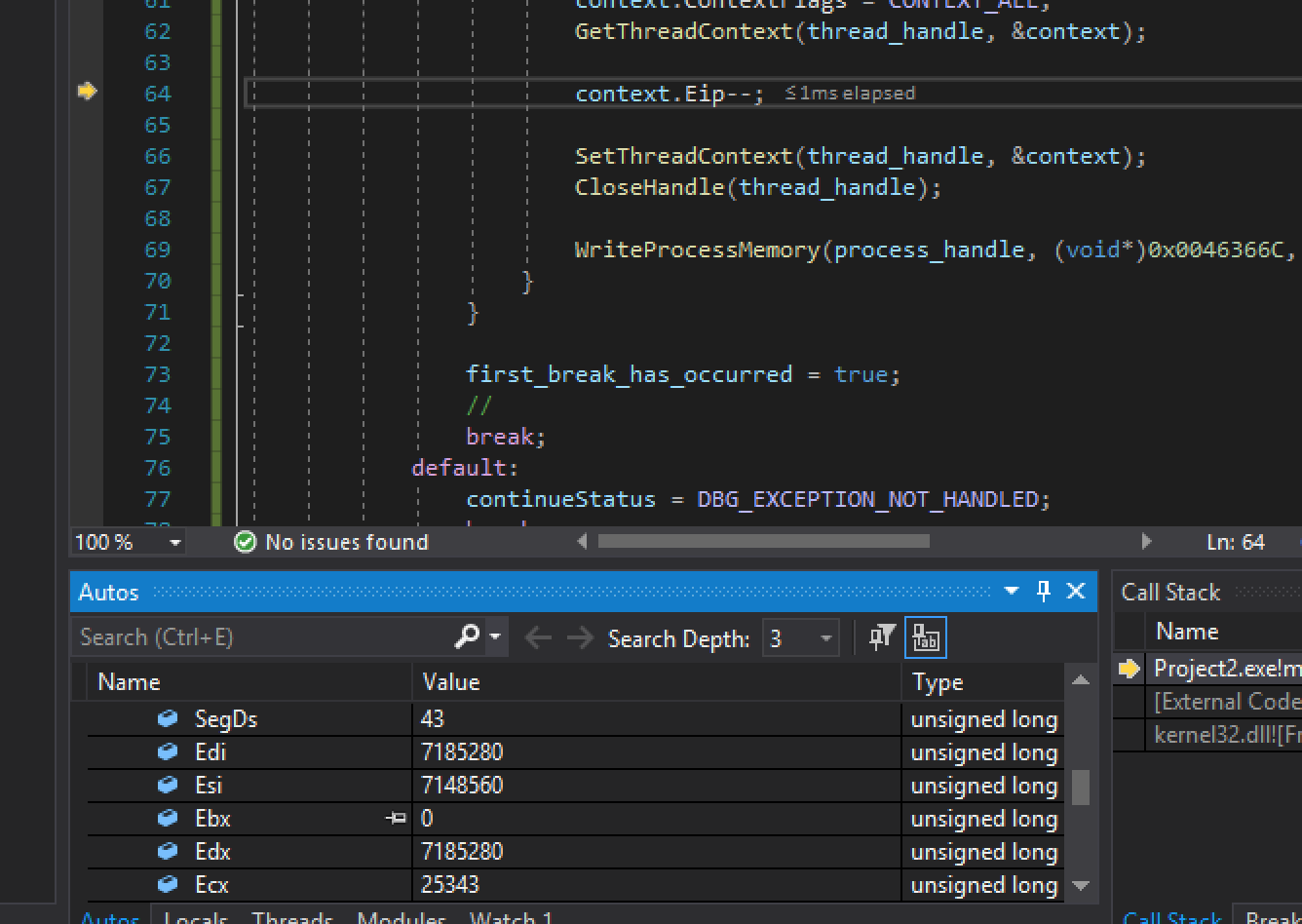

A basic debugger view of the target while it is paused.

Handle the `int3` pause

When a software breakpoint installed by this debugger fires:

suspend the relevant flow through the debug event;
restore the original byte;
move the instruction pointer back by one byte;
enable the CPU trap flag for one instruction;
continue.

The next single-step exception lets the debugger reinsert 0xCC and clear the trap flag.

This two-step cycle is why a breakpoint has state; it is not just one changed byte.

enum BreakpointPhase {
    // 🔴 The target currently contains 0xCC at the owned address.
    Armed,
    // 👣 The original byte is temporarily restored for exactly this thread.
    SteppingOriginal { thread_id: u32 },
    // ⚪ No debugger-owned byte is installed at this address.
    Disabled,
}

The two-step life of a software breakpoint. This step-by-step trace needs JavaScript. Here is the code and where the run ends.

orig = read_byte(addr)  # set the breakpoint
write_byte(addr, 0xCC)  # int3 replaces the first byte
# the game reaches addr; the CPU raises int3
if exception_addr not in map: pass it on
write_byte(addr, orig)  # put the real byte back
ip = ip - 1  # int3 was 1 byte long
trap_flag = 1  # stop after ONE instruction
# the instruction runs; single-step exception
write_byte(addr, 0xCC)  # re-arm
trap_flag = 0  # continue the game

Clear the trap flag and let the game run freely. The cycle ends where it began: armed, with the original byte safely in the map.

Final values: addr = 0x00A31000; orig = 0x29; phase = Armed; exception_addr = 0x00A31000; ip = 0x00A31003; trap_flag = 0.

Read every step of the lesson’s example

Step 1, line 1. To set a breakpoint at 0x00A31000 the debugger first reads the byte there, 0x29, and remembers it in its map. Without that saved byte it could never run the real instruction.
addr = 0x00A31000; orig = 0x29; phase = Disabled.
Memory: …1000 = 29; …1001 = 46; …1002 = 30.
Step 2, line 2. It overwrites that one byte with 0xCC, the one-byte int3 instruction. The rest of the instruction is untouched. The breakpoint is now armed.
addr = 0x00A31000; orig = 0x29; phase = Armed.
Memory: …1000 = CC; …1001 = 46; …1002 = 30.
Step 3, line 3. The game reaches the breakpoint. The CPU executes the 0xCC byte, which raises int3, and the debugger gets a debug event. The CPU has already moved ip past that one byte.
addr = 0x00A31000; orig = 0x29; phase = Armed; exception_addr = 0x00A31000; ip = 0x00A31001.
Memory: …1000 = CC; …1001 = 46 (ip points here); …1002 = 30.
Step 4, line 4. 0x00A31000 is in the map, so this breakpoint is ours and the debugger handles it.
addr = 0x00A31000; orig = 0x29; phase = Armed; exception_addr = 0x00A31000; ip = 0x00A31001.
Memory: …1000 = CC; …1001 = 46 (ip points here); …1002 = 30.
Step 5, line 5. Restore the original byte, 0x29, so the real instruction is whole again. The breakpoint is disarmed for exactly this one run of it.
addr = 0x00A31000; orig = 0x29; phase = SteppingOriginal; exception_addr = 0x00A31000; ip = 0x00A31001.
Memory: …1000 = 29; …1001 = 46 (ip points here); …1002 = 30.
Step 6, line 6. Move ip back one byte. It had stepped past the int3, but the instruction that should run is the real one, which starts at the breakpoint address.
addr = 0x00A31000; orig = 0x29; phase = SteppingOriginal; exception_addr = 0x00A31000; ip = 0x00A31000.
Memory: …1000 = 29 (ip points here); …1001 = 46; …1002 = 30.
Step 7, line 7. Set the CPU's trap flag, so the CPU raises a single-step exception after exactly one instruction. Then the debugger continues the game.
addr = 0x00A31000; orig = 0x29; phase = SteppingOriginal; exception_addr = 0x00A31000; ip = 0x00A31000; trap_flag = 1.
Memory: …1000 = 29 (ip points here); …1001 = 46; …1002 = 30.
Step 8, line 8. The real instruction runs once. Because of the trap flag, the CPU immediately raises a single-step exception and the debugger regains control.
addr = 0x00A31000; orig = 0x29; phase = SteppingOriginal; exception_addr = 0x00A31000; ip = 0x00A31003; trap_flag = 1.
Memory: …1000 = 29; …1001 = 46; …1002 = 30.
Step 9, line 9. Put 0xCC back so the breakpoint fires next time too. This second step is why a breakpoint has state and is not just a changed byte.
addr = 0x00A31000; orig = 0x29; phase = Armed; exception_addr = 0x00A31000; ip = 0x00A31003; trap_flag = 1.
Memory: …1000 = CC; …1001 = 46; …1002 = 30.
Step 10, line 10. Clear the trap flag and let the game run freely. The cycle ends where it began: armed, with the original byte safely in the map.
addr = 0x00A31000; orig = 0x29; phase = Armed; exception_addr = 0x00A31000; ip = 0x00A31003; trap_flag = 0.
Memory: …1000 = CC; …1001 = 46; …1002 = 30.

Distinguish your exceptions

Not every breakpoint exception belongs to your debugger. Windows and the target may use breakpoints internally.

Check:

exception code;
address;
whether the address is in your breakpoint map;
first-chance status;
current phase and thread.

Pass unhandled exceptions onward with the correct continue status.

Debugging changes what you observe

A debugger is a measuring instrument, and every instrument affects its subject somehow. A software breakpoint temporarily replaces one instruction byte. Pausing one thread can delay rendering, audio, input, or network work. Single stepping makes a short path take far longer than normal, and Windows can expose whether a process is being debugged.

That creates an important distinction:

Result	What it shows
The behavior happens both attached and detached	It is probably part of the target rather than a pause artifact
Only elapsed time changes while attached	The debugger changed scheduling or timing
A flag or exception path changes while attached	The target can observe the debugging environment
A byte differs at your breakpoint address	Your debugger deliberately changed code to gain control

On the course target, run the same input once without a debugger and once attached, logging inputs, chosen branches, elapsed time, and output both times. A difference that appears only while attached comes from the measurement, not from the game’s normal logic. That effect is called instrumentation bias: the tool used to measure a program changes what the program does.

Debugger-aware behavior usually comes from a small set of sources: flags, handles, exceptions, timing, instructions, memory, and interaction with the desktop. A change that appears only while attached traces back to one of them. This lesson intentionally does not turn those sources into concealment or bypass instructions.

Keep FFI wrappers narrow

Windows calls include:

DebugActiveProcess or process creation with debug flags;
WaitForDebugEvent;
ContinueDebugEvent;
thread context get/set;
process memory read/write;
FlushInstructionCache;
handle cleanup.

Each wrapper should document handle ownership, pointer validity, buffer size, and structure initialization.

Guarantee continuation

Use a guard so an early parsing error does not accidentally leave an event uncontinued:

struct ContinueGuard {
    process_id: u32,
    thread_id: u32,
    status: NTSTATUS,
    active: bool,
}

impl ContinueGuard {
    fn continue_now(mut self) -> windows::core::Result<()> {
        // 🛡️ SAFETY: these IDs came from the one pending DEBUG_EVENT, and this
        // guard owns the responsibility to continue it exactly once.
        unsafe {
            ContinueDebugEvent(self.process_id, self.thread_id, self.status)?;
        }
        // ✅ Clear responsibility only after Windows accepted the continue.
        // If the call errors, Drop still attempts to release the pending event.
        self.active = false;
        Ok(())
    }
}

impl Drop for ContinueGuard {
    fn drop(&mut self) {
        if self.active {
            // 🧹 SAFETY: best-effort release of the still-pending event. Using
            // NOT_HANDLED avoids swallowing a target exception we did not own.
            let _ = unsafe {
                ContinueDebugEvent(
                    self.process_id,
                    self.thread_id,
                    DBG_EXCEPTION_NOT_HANDLED,
                )
            };
        }
    }
}

Its Drop implementation can make a best-effort continue and log failures.

First milestone

Do not start with stepping, symbols, and a GUI. First:

launch a tiny practice target under the debugger;
print process and thread events;
continue every event;
exit cleanly when the target exits.

Then add one breakpoint at a known function in the course target.

Attach it to Wesnoth

Once the breakpoint cycle works in the tiny target, point the debugger at the 32-bit wesnoth.exe 1.14.9 process. Add one software breakpoint at the income instruction from lesson 2.10:

0x009B4D00  add dword ptr [eax+4], edx

Start a local match with income and end the turn. When the event fires, copy the thread context and log:

instruction = 0x009B4D00
side record = EAX
gold address = EAX + 0x4
income delta = EDX
gold before = read_u32(EAX + 0x4)

Then perform the restore/single-step/re-arm sequence and continue Wesnoth. The turn must finish normally, and the breakpoint should fire again next turn. This turns the debugger project into a real game-hacking tool rather than leaving it attached only to a sample program.

Cleanup

On detach or exit:

restore every armed breakpoint;
flush the instruction cache;
continue any pending event;
detach if the target is still running;
close every process and thread handle.

A debugger that pauses correctly but cannot cleanly detach is not finished.

Run the completed debugger

Windows VM

Build the workspace for 32-bit Windows, start Wesnoth 1.14.9 in a local match, and run:

.\target\i686-pc-windows-msvc\release\wesnoth_debugger.exe

End a turn to hit the real income instruction. The tool prints EAX, signed and hexadecimal EDX, the calculated EAX + 4 address, and gold before the add. Press End between events to restore 0x01, detach, and close all handles.

The complete state machine is wesnoth_debugger.rs. It implements attach, exact opcode verification, WaitForDebugEvent, event-handle cleanup, x86 thread contexts, EIP rewind, trap-flag stepping, re-arming, error-path continuation, byte restoration, and detach using the windows crate.

wesnoth_debugger.rs

windows-labs/src/bin/ · Rust, 280 lines

View on GitHub

Show the codeHide the code

#[cfg(all(windows, target_arch = "x86"))]
mod app {
    use anyhow::{Context as _, Result};
    use gha_windows_labs::{OwnedHandle, Process};
    use windows::Win32::{
        Foundation::{
            CloseHandle, DBG_CONTINUE, DBG_EXCEPTION_NOT_HANDLED, ERROR_SEM_TIMEOUT,
            EXCEPTION_BREAKPOINT, EXCEPTION_SINGLE_STEP, HANDLE, NTSTATUS,
        },
        System::{
            Diagnostics::Debug::{
                CONTEXT, CONTEXT_FULL_X86, CREATE_PROCESS_DEBUG_EVENT, CREATE_THREAD_DEBUG_EVENT,
                ContinueDebugEvent, DEBUG_EVENT, DebugActiveProcess, DebugActiveProcessStop,
                EXCEPTION_DEBUG_EVENT, EXIT_PROCESS_DEBUG_EVENT, GetThreadContext,
                LOAD_DLL_DEBUG_EVENT, SetThreadContext, WaitForDebugEvent,
            },
            Threading::{
                OpenThread, THREAD_GET_CONTEXT, THREAD_QUERY_INFORMATION, THREAD_SET_CONTEXT,
            },
        },
        UI::Input::KeyboardAndMouse::{GetAsyncKeyState, VK_END},
    };

    const INCOME_INSTRUCTION: usize = 0x009B_4D00;
    const TRAP_FLAG: u32 = 1 << 8;

    #[derive(Clone, Copy, Debug)]
    enum BreakpointPhase {
        Armed,
        SteppingOriginal { thread_id: u32 },
    }

    struct AttachGuard {
        process_id: u32,
        active: bool,
    }

    impl AttachGuard {
        fn detach(&mut self) -> Result<()> {
            if self.active {
                // SAFETY: this debugger attached to this PID and has no event
                // waiting for continuation when this method is called.
                unsafe { DebugActiveProcessStop(self.process_id) }?;
                self.active = false;
            }
            Ok(())
        }
    }

    impl Drop for AttachGuard {
        fn drop(&mut self) {
            if self.active {
                // SAFETY: best-effort cleanup for the matching attach call.
                let _ = unsafe { DebugActiveProcessStop(self.process_id) };
            }
        }
    }

    fn close_event_handle(handle: HANDLE) {
        if !handle.is_invalid() {
            // SAFETY: debug events transfer these handles to the debugger. This
            // tool does not retain them because it opens its own process/thread
            // handles when needed.
            let _ = unsafe { CloseHandle(handle) };
        }
    }

    fn open_event_thread(thread_id: u32) -> Result<OwnedHandle> {
        let access = THREAD_GET_CONTEXT | THREAD_SET_CONTEXT | THREAD_QUERY_INFORMATION;
        // SAFETY: the thread id comes from a live debug event; inheritance is off.
        let handle = unsafe { OpenThread(access, false, thread_id) }?;
        Ok(OwnedHandle::from_raw(handle)?)
    }

    fn get_context(thread: &OwnedHandle) -> Result<CONTEXT> {
        let mut context = CONTEXT {
            ContextFlags: CONTEXT_FULL_X86,
            ..Default::default()
        };
        // SAFETY: Windows suspended the event thread and `context` is writable.
        unsafe { GetThreadContext(thread.raw(), &mut context) }?;
        Ok(context)
    }

    fn set_context(thread: &OwnedHandle, context: &CONTEXT) -> Result<()> {
        // SAFETY: the context belongs to this suspended event thread.
        unsafe { SetThreadContext(thread.raw(), context) }?;
        Ok(())
    }

    fn end_pressed() -> bool {
        // SAFETY: VK_END is a valid virtual-key value.
        unsafe { GetAsyncKeyState(VK_END.0.into()) & 1 != 0 }
    }

    fn dispose_event_handles(event: &DEBUG_EVENT) {
        // SAFETY: the active union field is selected by dwDebugEventCode.
        unsafe {
            match event.dwDebugEventCode {
                CREATE_PROCESS_DEBUG_EVENT => {
                    let info = event.u.CreateProcessInfo;
                    close_event_handle(info.hFile);
                    close_event_handle(info.hProcess);
                    close_event_handle(info.hThread);
                }
                CREATE_THREAD_DEBUG_EVENT => close_event_handle(event.u.CreateThread.hThread),
                LOAD_DLL_DEBUG_EVENT => close_event_handle(event.u.LoadDll.hFile),
                _ => {}
            }
        }
    }

    fn handle_exception(
        process: &Process,
        event: &DEBUG_EVENT,
        original_byte: u8,
        phase: &mut BreakpointPhase,
        saw_initial_breakpoint: &mut bool,
    ) -> Result<NTSTATUS> {
        // SAFETY: the event code was checked before this function was called.
        let exception = unsafe { event.u.Exception };
        let record = exception.ExceptionRecord;
        let code = record.ExceptionCode;
        let address = record.ExceptionAddress as usize;

        if code == EXCEPTION_BREAKPOINT && address == INCOME_INSTRUCTION {
            anyhow::ensure!(
                matches!(phase, BreakpointPhase::Armed),
                "income breakpoint fired while it was not armed"
            );
            process.write_code(INCOME_INSTRUCTION, &[original_byte])?;

            let thread = open_event_thread(event.dwThreadId)?;
            let mut context = get_context(&thread)?;
            // INT3 is one byte, and EIP points immediately after it. Put EIP
            // back on the original ADD instruction and ask the CPU to trap once.
            context.Eip = u32::try_from(INCOME_INSTRUCTION)?;
            context.EFlags |= TRAP_FLAG;

            let gold_address = (context.Eax as usize)
                .checked_add(4)
                .context("EAX + gold offset overflowed")?;
            let gold_before = process.read_u32(gold_address)?;
            println!(
                "income: EAX={:#010x}, EDX={} ({:#010x}), gold @ {gold_address:#010x} = {gold_before}",
                context.Eax, context.Edx as i32, context.Edx,
            );
            set_context(&thread, &context)?;
            *phase = BreakpointPhase::SteppingOriginal {
                thread_id: event.dwThreadId,
            };
            return Ok(DBG_CONTINUE);
        }

        if code == EXCEPTION_SINGLE_STEP {
            let BreakpointPhase::SteppingOriginal { thread_id } = *phase else {
                return Ok(DBG_EXCEPTION_NOT_HANDLED);
            };
            if thread_id != event.dwThreadId {
                return Ok(DBG_EXCEPTION_NOT_HANDLED);
            }

            let thread = open_event_thread(event.dwThreadId)?;
            let mut context = get_context(&thread)?;
            context.EFlags &= !TRAP_FLAG;
            set_context(&thread, &context)?;
            process.write_code(INCOME_INSTRUCTION, &[0xCC])?;
            *phase = BreakpointPhase::Armed;
            return Ok(DBG_CONTINUE);
        }

        // Windows generates one breakpoint to finish an attach. It is not the
        // game's income breakpoint, but the debugger must consume it once.
        if code == EXCEPTION_BREAKPOINT && !*saw_initial_breakpoint {
            *saw_initial_breakpoint = true;
            return Ok(DBG_CONTINUE);
        }

        Ok(DBG_EXCEPTION_NOT_HANDLED)
    }

    pub fn run() -> Result<()> {
        let entry = Process::find("wesnoth.exe")?;
        let process = Process::open(entry.clone(), true)?;
        anyhow::ensure!(
            process.is_32_bit()?,
            "this debugger profile needs 32-bit Wesnoth"
        );

        let original_byte = process.read_bytes(INCOME_INSTRUCTION, 1)?[0];
        anyhow::ensure!(
            original_byte == 0x01,
            "expected ADD opcode 0x01 at {INCOME_INSTRUCTION:#010x}, found {original_byte:#04x}"
        );

        // SAFETY: the PID came from ToolHelp and identifies the exact target.
        unsafe { DebugActiveProcess(entry.id) }?;
        let mut attach = AttachGuard {
            process_id: entry.id,
            active: true,
        };
        process.write_code(INCOME_INSTRUCTION, &[0xCC])?;

        let mut phase = BreakpointPhase::Armed;
        let mut saw_initial_breakpoint = false;
        println!(
            "Attached to Wesnoth PID {}. End a turn to hit {INCOME_INSTRUCTION:#010x}; press End to detach.",
            entry.id
        );

        loop {
            if matches!(phase, BreakpointPhase::Armed) && end_pressed() {
                process.write_code(INCOME_INSTRUCTION, &[original_byte])?;
                attach.detach()?;
                println!("Restored the breakpoint byte and detached.");
                break;
            }

            let mut event = DEBUG_EVENT::default();
            // A short timeout makes the End key usable without another thread.
            // SAFETY: `event` is a correctly initialized writable structure.
            match unsafe { WaitForDebugEvent(&mut event, 100) } {
                Ok(()) => {}
                Err(error) if error.code() == ERROR_SEM_TIMEOUT.to_hresult() => continue,
                Err(error) => return Err(error.into()),
            }

            let event_result = if event.dwDebugEventCode == EXCEPTION_DEBUG_EVENT {
                handle_exception(
                    &process,
                    &event,
                    original_byte,
                    &mut phase,
                    &mut saw_initial_breakpoint,
                )
            } else {
                Ok(DBG_CONTINUE)
            };

            dispose_event_handles(&event);
            let continue_status = match event_result {
                Ok(status) => status,
                Err(error) => {
                    // Never leave Wesnoth frozen because a log/read failed.
                    // SAFETY: this exactly matches the event returned above.
                    let _ = unsafe {
                        ContinueDebugEvent(
                            event.dwProcessId,
                            event.dwThreadId,
                            DBG_EXCEPTION_NOT_HANDLED,
                        )
                    };
                    return Err(error);
                }
            };

            // SAFETY: every event is continued exactly once.
            unsafe {
                ContinueDebugEvent(event.dwProcessId, event.dwThreadId, continue_status)?;
            }

            if event.dwDebugEventCode == EXIT_PROCESS_DEBUG_EVENT {
                attach.active = false; // the process no longer exists to detach from
                println!("Wesnoth exited; debugger finished.");
                break;
            }
        }
        Ok(())
    }
}

#[cfg(all(windows, target_arch = "x86"))]
fn main() -> anyhow::Result<()> {
    app::run()
}

#[cfg(not(all(windows, target_arch = "x86")))]
fn main() {
    eprintln!("Build this debugger for i686-pc-windows-msvc.");
}

What must a minimal Windows debugger do after processing a debug event?

Finished Lesson 6.10?

Mark it done and the lesson list shows a beside it. A chapter whose lessons are all done is marked done too. Progress is saved in this browser only.

Chapter 6: 11 lessons

This book grew out of the original Game Hacking Academy by attilathedud and has been rewritten as a beginner-first course. Like the original repository, its source is published under the Apache License 2.0.

Debug Events and Software Breakpoints

Keyboard shortcuts

Lesson 6.10 — Debug Events and Software Breakpoints: cheatsheet

Key terms

Formulas and patterns

Review

A debugger is an event loop

Model events immediately

Own breakpoint state

Code at 0x00A31000

Breakpoint map

Code at 0x00A31000

Breakpoint map

Code at 0x00A31000

Breakpoint map

Handle the `int3` pause

Distinguish your exceptions

Debugging changes what you observe

Keep FFI wrappers narrow

Guarantee continuation

First milestone

Attach it to Wesnoth

Cleanup

Run the completed debugger

Continue every event

Finished Lesson 6.10?

Lesson 6.10 — Debug Events and Software Breakpoints: cheatsheet

Key terms

Formulas and patterns

Review

A debugger is an event loop

Model events immediately

Own breakpoint state

Code at 0x00A31000

Breakpoint map

Code at 0x00A31000

Breakpoint map

Code at 0x00A31000

Breakpoint map

Handle the int3 pause

Distinguish your exceptions

Debugging changes what you observe

Keep FFI wrappers narrow

Guarantee continuation

First milestone

Attach it to Wesnoth

Cleanup

Run the completed debugger

Continue every event

Finished Lesson 6.10?

Handle the `int3` pause
